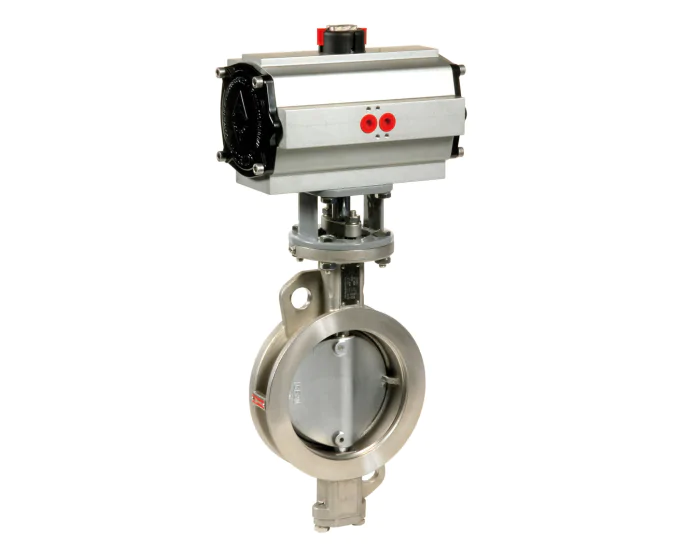

The 114 series stainless steel butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN300. It is a wafer type, double offset.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 25 |
| Connections | Flanged PN25 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category II |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' Double acting | 260970015101 | S1002015 |
€784.99
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' Spring return | 260970016102 | S1002016 |
€827.41
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 Double acting | 260971015101 | S1002017 |
€836.97
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 Spring return | 260971016102 | S1002018 |
€886.83
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' Double acting | 260972015102 | S1002019 |
€1,030.20
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' Spring return | 260972016103 | S1002020 |
€1,081.20
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' Double acting | 260973015102 | S1002021 |
€1,202.96
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' Spring return | 260973016104 | S1002022 |
€1,302.66
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' Double acting | 260974015104 | S1002023 |
€1,599.69
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' Spring return | 260974016105 | S1002024 |
€1,720.61
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' Double acting | 260975015105 | S1002025 |
€1,844.73
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' Spring return | 260975016106 | S1002026 |
€1,989.00
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' Double acting | 260976015105 | S1002027 |
€2,937.60
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' Spring return | 260976016106 | S1002028 |
€3,080.40
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset Double acting DN250 - 10'' | 260977015106 | S1002029 |
€4,121.21
(excl. btw)
|
add to cart |
| Flanged PN25 Stainless steel CF8M (1.4408) Double offset Double acting DN300 - 12'' | 260978015106 | S1002030 |
€5,881.31
(excl. btw)
|
add to cart |
